icRamp Devlog #16 — Liquid Orders: Top‑ups + Provider Icons

Continuation of Devlog #15 — Stripe Order Payments. This time we made orders liquid: the offramper can top‑up crypto after order creation, and we polished the Payment Provider UI with icons shared across the app.

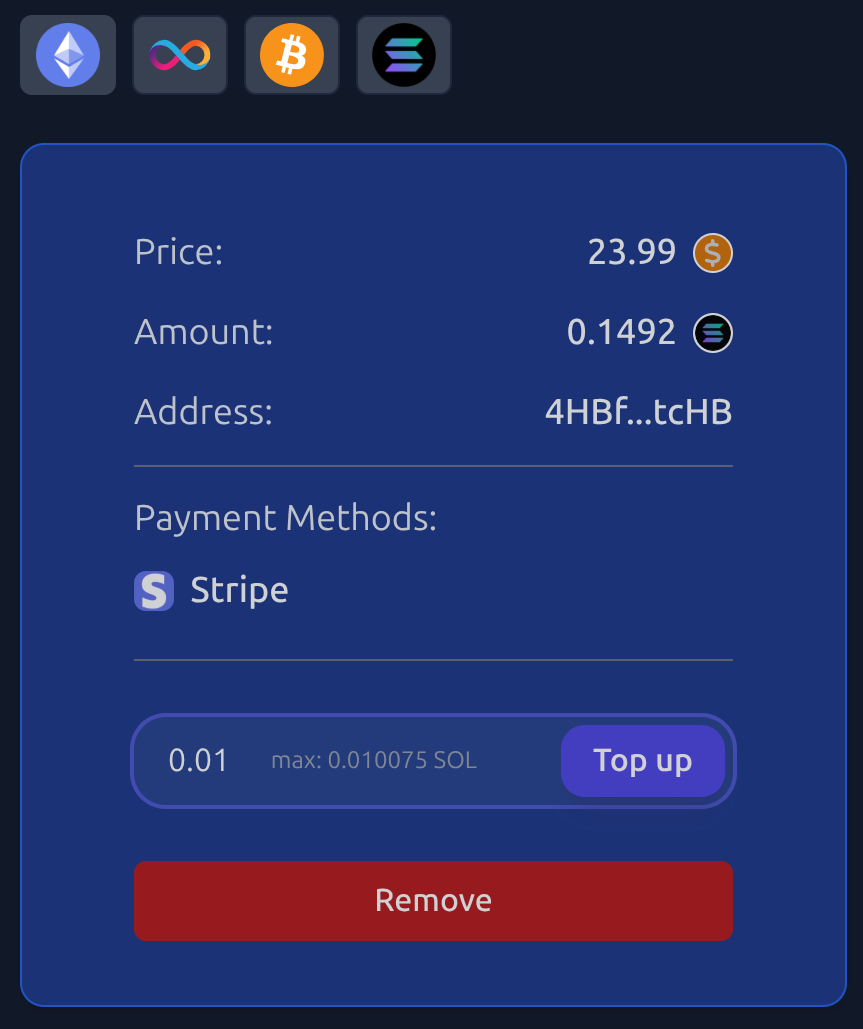

Top‑up button on Order Card — placeholder

TL;DR — What changed

Backend
- New top_up_order flow acquires a processing lock around mutation and always releases it.
- Fee is recomputed on the new total (previous + added), guarding against low‑funds.
- Minor fix in freeze_order authorization.
Frontend
- Added a Top‑up control on the Order Card with clean styling, max balance helper, and async refetch.
- Introduced a single <ProviderIcon/> component and used it in Create Order, Order Card, User Profile, and Register User.

Data model (recap)

Orders stay in Created until locked by an onramper. Top‑up is allowed only in Created and only by the offramper owner. We track a processing boolean per order to serialize writes.

Backend — changes & snippets

1) `top_up_order` — scoped lock + finally‑unset

Only the parts that changed (full body replaced for clarity).

#[ic_cdk::update]
async fn top_up_order(
    order_id: u64,
    user_id: u64,
    session_token: String,
    amount: u128,
    deposit_input: Option<DepositInput>,
) -> Result<()> {
    // auth
    let user = memory::stable::users::get_user(&user_id)?;
    user.validate_session(&session_token)?;

    // acquire lock; always release at the end
    orders::set_processing_order(&order_id)?;

    let res = async {
        // operate on a fresh snapshot AFTER lock
        let order = orders::get_order(&order_id)?.created()?;
        if order.offramper_user_id != user_id {
            return Err(UserError::Unauthorized.into());
        }

        let tx_hash = order_management::validate_deposit_tx(
            &order.crypto.asset,
            deposit_input.clone(),
            order.offramper_address.clone().address,
            amount,
        )
        .await?;

        let (gas_lock, gas_withdraw) = match deposit_input {
            Some(DepositInput::Evm(v)) => (Some(v.estimated_gas_lock), Some(v.estimated_gas_withdraw)),
            _ => (None, None),
        };

        order_management::topup_order(&order, amount, gas_lock, gas_withdraw).await?;

        if let Some(tx_hash) = tx_hash {
            spent_transactions::mark_tx_hash_as_processed(tx_hash);
        }
        Ok(())
    }
    .await;

    let _ = orders::unset_processing_order(&order_id);
    res
}

2) `order_management::topup_order` — fee on new total

 pub async fn topup_order(
-    order: &Order,
-    amount: u128,
-    estimated_gas_lock: Option<u64>,
-    estimated_gas_withdraw: Option<u64>,
-) -> Result<()> {
-    let crypto_fee = order_crypto_fee(
-        order.crypto.asset.clone(),
-        order.crypto.amount,
+    order: &Order,
+    amount: u128,
+    estimated_gas_lock: Option<u64>,
+    estimated_gas_withdraw: Option<u64>,
+) -> Result<()> {
+    let new_total = order.crypto.amount + amount;
+
+    let crypto_fee = order_crypto_fee(
+        order.crypto.asset.clone(),
+        new_total,
         estimated_gas_lock,
         estimated_gas_withdraw,
     )
     .await?;

-    if 2 * crypto_fee >= order.crypto.amount + amount {
+    if 2 * crypto_fee >= new_total {
         return Err(BlockchainError::FundsTooLow)?;
     };

     memory::stable::orders::mutate_order(&order.id, |order| {
         let order = order.created_mut()?;
-        order.crypto.amount += amount;
-        order.crypto.fee = crypto_fee;
+        order.crypto.amount = new_total;
+        order.crypto.fee = crypto_fee;
         Ok(())
     })?
 }

3) `freeze_order` — auth fix

- if !order.offramper_user_id == user_id {
+ if order.offramper_user_id != user_id {
     return Err(UserError::Unauthorized.into());
 }

Why the lock? We ensure only one writer mutates an order at a time (no stale reads), and we always reset processing even on errors. This prevents created_mut() from failing with OrderNotProcessing due to accidental early unsets.

Frontend — changes & snippets

1) Shared `<ProviderIcon/>`

New file:

// components/ui/ProviderIcon.tsx
import { PaymentProviderTypes } from '@/model/types';
import payPalLogo from '@/assets/logos/paypal-logo.png';
import stripeLogo from '@/assets/logos/stripe-logo.png';
import revolutLogo from '@/assets/logos/revolut-logo.webp';
import { FontAwesomeIcon } from '@fortawesome/react-fontawesome';
import { faMailReply } from '@fortawesome/free-solid-svg-icons';

export const ProviderIcon = ({ type, className = "h-5 rounded-md w-auto" }: { type: PaymentProviderTypes; className?: string }) => {
  if (type === "PayPal")  return <img src={payPalLogo} alt="PayPal" className={className} />;
  if (type === "Stripe")  return <img src={stripeLogo} alt="Stripe" className={className} />;
  if (type === "Revolut") return <img src={revolutLogo} alt="Revolut" className={className} />;
  if (type === "Email")   return <FontAwesomeIcon icon={faMailReply} size="lg" />;
  return null;
};

Used in CreateOrder, OrderCard, UserProfile, RegisterUser next to the provider name (no layout churn, minimal gap).

2) `useOrderLogic` — top‑up state + handler

Only the added bits:

+ const [topUpAmount, setTopUpAmount] = useState<number>(0);
+ const [topUpLoading, setTopUpLoading] = useState(false);
+ const [topUpTxHash, setTopUpTxHash] = useState<string | null>(null);

- export const useOrderLogic = (order: OrderState, refetchOrders: () => void) => {
+ export const useOrderLogic = (order: OrderState, refetchOrders: () => Promise<void>) => {

+ const topUp = async () => {
+   if (!baseOrder || !token || !user || !sessionToken) return;
+   if (topUpAmount <= 0) return;
+   setTopUpLoading(true);
+   try {
+     const amountUnits = toUnits(topUpAmount, token.decimals);
+     let depositInput: [] | [DepositInput] = [];
+     // deposit per chain (EVM/ICP/BTC/SOL)… returns depositInput + txHash when applicable
+     // …
+     const r = await backend.top_up_order(BigInt(baseOrder.id), BigInt(user.id), sessionToken, amountUnits, depositInput);
+     if ('Err' in r) throw new Error(rampErrorToString(r.Err));
+     setTopUpAmount(0);
+     await refetchOrders();
+   } finally {
+     setTopUpLoading(false);
+   }
+ };

3) Order Card — Top‑up UI (with max)

Minimal diffs only:

- <input className="w-full h-11 rounded-2xl bg-white/5 borderpl-4 pr-28 …" … />
+ <input className="w-full h-11 rounded-2xl bg-white/5 border pl-4 pr-28 …" … />

- <span className="absolute right-2 top-1/2 …">max: …</span>
+ <span
+   onClick={() => { const b = getAvailableBalance(); if (b) setTopUpAmount(b.raw); }}
+   className="absolute right-28 top-1/2 -translate-y-1/2 text-gray-400 text-xs cursor-pointer select-none z-10">
+   max: {getAvailableBalance() ? getAvailableBalance()!.formatted : "0.00"} {token?.name}
+ </span>

4) Payment Methods — icons

Use <ProviderIcon/> next to labels:

- <label htmlFor={id} className="ml-1 text-lg inline-flex items-center">
-   <span>{providerType}</span>
- </label>
+ <label htmlFor={id} className="ml-1 text-lg inline-flex items-center gap-2">
+   <ProviderIcon type={providerType} />
+   <span>{providerType}</span>
+ </label>

And in read‑only lines:

- <div className="text-lg my-2 inline-flex items-center">
+ <div className="text-lg my-2 inline-flex items-center gap-2">
    <ProviderIcon type={providerType} />
    <span>{providerType}</span>
  </div>

E2E notes

Top‑up is restricted to Created orders and to the offramper owner.
The backend re‑checks the deposit transaction hash (validate_deposit_tx) before mutating state.
We mark seen tx hashes (spent_transactions::mark_tx_hash_as_processed) to avoid double‑counting retries.
Fees follow the new total to avoid underfunded orders after multiple top‑ups.

Deployment

# Build + deploy backend
dfx deploy icramp_backend --argument "( variant { Upgrade = null } )" --upgrade-unchanged

# Frontend: rebuild
cd frontend && npm run build && cd .. && dfx deploy frontend --mode reinstall --yes

Gotchas & next

Candid Option from TS is [] | [value] — make sure per‑chain deposit helpers return that shape.
We’ll extend top‑up to Locked orders when/if we support partial fills during the locked window (requires vault logic).

“Liquid” flow for partial fills and top‑ups by others (order book style).
Stripe‑side notifications for partial payouts once vault logic is unified.
